AFM探針描述
適用的Sample:
適用的AFM機(jī)型:
Innova
適用的Work Mode:
MFM
適用的Application:
Electrical
Coating 描述
| cantilever Front side coating | Magnetic CoCr |
|---|---|
| cantilever Back side coating | Reflective CoCr |
| tip coating | Magnetic |

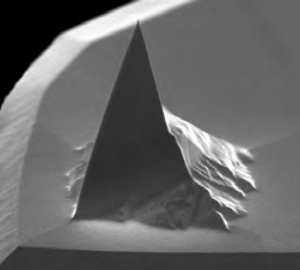

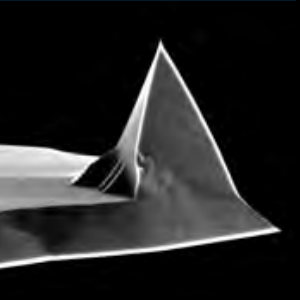

Tip 規(guī)格
| tip geometry | Standard (Steep) |
|---|---|
| tip radius (Nom) | 20nm |
| tip height | 10-15um |
| Front Angle (FA) | 25±2.5° |
| Back Angle (BA) | 15±2.5° |
| Side Angle (SA) | 22.5±2.5° |
Cantilever 規(guī)格
| cantilever geometry | Rectangular |
|---|---|
| K(Nom) | 2.8N/m |
| Frequency(Nom) | 75KHz |
| length(Nom) | 225um |
| thickness(Nom) | 2.75um |
| cantilever material | 0.01 - 0.025 Ωcm Antimony (n) doped Si |
| top layer back | -- |
