AD-2.8-AS
  • Manufacturer: Bruker
  • Cantilever Coating: B: Reflective Au
  • Tip Geometry: Standard
  • Number of Cantilevers: 1個懸臂
    F65KHz K2.8N/m L225um
AFM探針描述

適用的Sample:
Ceramics,Other Soft Sample,Polymers

適用的AFM機(jī)型:
BioScopeResolve,DimensionIcon,DimensionXR,Innova,JPK,MultiMode,Non-Bruker

適用的Work Mode:
CAFM,contact,Nanoindentation,PeakForce QNM,peakforce tapping,PeakForce TUNA,tapping or non-contact,TUNA

適用的Application:
General Topography,Mechanical Force Curves,Mechanical Property Mapping

Coating 描述
cantilever Back side coating Reflective Au
tip coating Highly conductive single crystal diamond

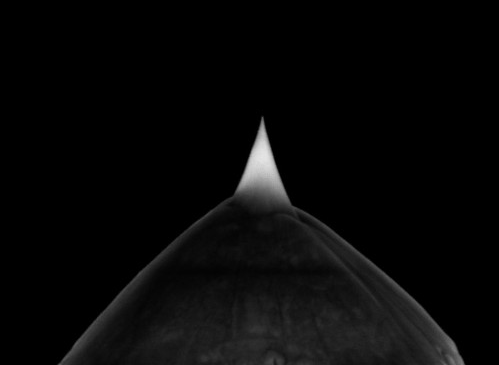

Tip 規(guī)格
tip geometry Standard
tip radius (Nom) 10 ± 5nm
tip height 12.5±2.5um
Front Angle (FA) 25±5°
Back Angle (BA) 15±5°
Side Angle (SA) 22.5±5°

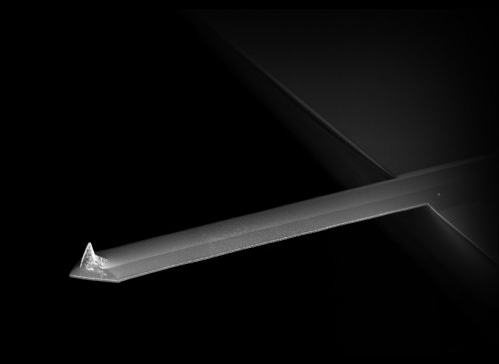

Cantilever 規(guī)格
cantilever geometry Rectangular
K(Nom) 2.8N/m
Frequency(Nom) 65KHz
length(Nom) 225um
thickness(Nom) 1.5um
cantilever material Single Crystal Diamond
top layer back --
