• Manufacturer: Bruker
  • Cantilever Coating: B: Reflective Aluminum,F: Wear resistant carbon
  • Tip Geometry: Critical Dimension (Overhang)
  • Number of Cantilevers: 1個懸臂
    F292KHz K35N/m L125um
AFM探針描述

適用的Sample:
Data Storage,Semiconductors

適用的AFM機型:
Insight

適用的Work Mode:
Critical Dimension (CD) AFM

適用的Application:
Holes/ Trenches

Coating 描述
cantilever Front side coating
cantilever Back side coating Reflective Aluminum
tip coating Carbon Coated

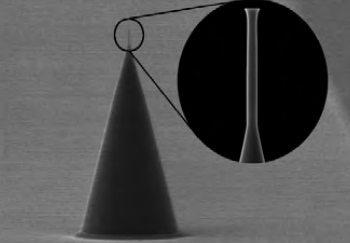

Tip 規格
tip geometry Critical Dimension (Overhang)
tip radius (Nom) --
tip height 10-20um
Overhang 5-15nm
Effective Length 500-700nm
Tip Width 100-130nm

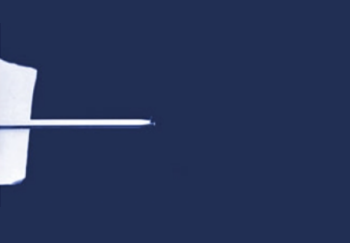

Cantilever 規格
cantilever geometry Rectangular
K(Nom) 35N/m
Frequency(Nom) 292KHz
length(Nom) 125um
thickness(Nom) 3.3um
cantilever material 0.010 - 0.025 Ωcm Silicon
top layer back --
