AFM探針描述
適用的Sample:
Ceramics,Other Hard Samples,Polymers
適用的AFM機(jī)型:
DimensionIcon,DimensionXR,Innova,JPK,MultiMode,Non-Bruker
適用的Work Mode:
contact,LFM
適用的Application:
General Topography
Coating 描述
| cantilever Back side coating | Reflective Aluminum |
|---|---|
| tip coating | -- |

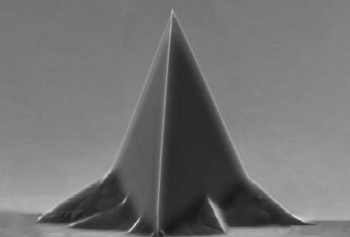

Tip 規(guī)格
| tip geometry | Standard (Steep) |
|---|---|
| tip radius (Nom) | 8nm |
| tip height | 10-15um |
| Front Angle (FA) | 25±2.5° |
| Back Angle (BA) | 15±2.5° |
| Side Angle (SA) | 22.5±2.5° |

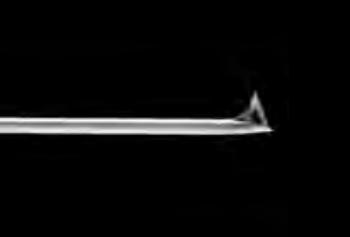

Cantilever 規(guī)格
| cantilever geometry | Rectangular |
|---|---|
| K(Nom) | 0.2N/m |
| Frequency(Nom) | 13KHz |
| length(Nom) | 450um |
| thickness(Nom) | 2um |
| cantilever material | 0.01 - 0.025 Ωcm Antimony (n) doped Si |
| top layer back | -- |
