• Manufacturer: Bruker
  • Cantilever Coating: B: Reflective Aluminum
  • Tip Geometry: Standard (Steep)
  • Number of Cantilevers: 1個懸臂
    F13KHz K0.2N/m L450um
AFM探針描述

適用的Sample:
Ceramics,Other Hard Samples,Polymers

適用的AFM機型:
DimensionIcon,DimensionXR,Innova,JPK,MultiMode,Non-Bruker

適用的Work Mode:
contact,LFM

適用的Application:
General Topography

Coating 描述
cantilever Back side coating Reflective Aluminum
tip coating --

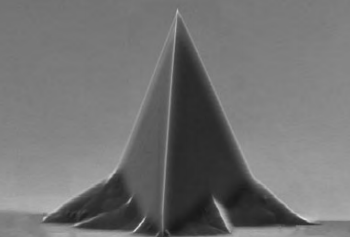

Tip 規格
tip geometry Standard (Steep)
tip radius (Nom) 8nm
tip height 10-15um
Front Angle (FA) 25±2.5°
Back Angle (BA) 15±2.5°
Side Angle (SA) 22.5±2.5°

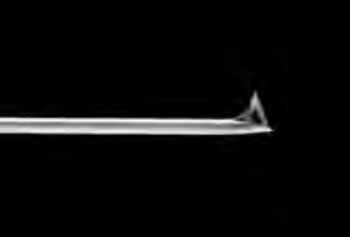

Cantilever 規格
cantilever geometry Rectangular
K(Nom) 0.2N/m
Frequency(Nom) 13KHz
length(Nom) 450um
thickness(Nom) 2um
cantilever material 0.01 - 0.025 Ωcm Antimony (n) doped Si
top layer back --
