AFM探針描述

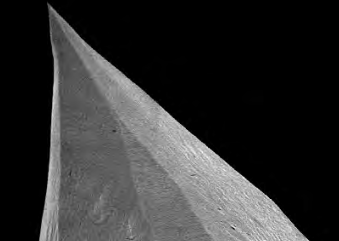

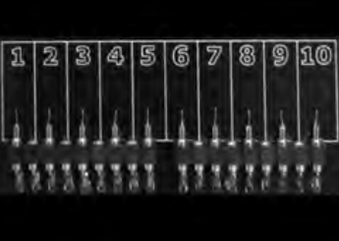

TERS probes for 633nm or 785nm excitation using STM feedback
適用的Sample:
Ceramics,Data Storage,Other Hard Samples,Other Soft Sample,Polymers,Semiconductors
適用的AFM機型:
Innova
適用的Work Mode:
STM,TERS
適用的Application:
Coating 描述
| tip coating | -- |
|---|
Tip 規(guī)格
| tip geometry | Solid Wire |
|---|---|
| tip radius (Nom) | -- |
| tip height | -- |
Cantilever 規(guī)格
| cantilever geometry | Special |
|---|---|
| K(Nom) | |
| Frequency(Nom) | |
| length(Nom) | |
| thickness(Nom) | -- |
| cantilever material | |
| top layer back | -- |
